Callback Service

TripLink supports callback to customer interfaces in multiple business scenarios. Customers can implement their own business logic in the callback interface.

The callback is based on the HTTP/HTTPS protocol with the POST method, and all request bodies are in JSON format with all characters encoded in UTF-8.

The callback process is considered Failed if any of the following situations occur: request failure, request timeout, or response status code other than 2XX.

The callback is divided into Synchronous and Asynchronous types. Synchronous requests must respond in a timely manner and have no retry mechanism, while asynchronous requests do not need to respond in a timely manner and have a retry mechanism.

Callback List

Name	Type	Response Time	Retry Count	Retry Interval
Authorization Decision Callback	Synchronous	3s	N/A	N/A
Authorization Result Notification	Asynchronous	9s	20	N × 2min
Settlement Result Notification	Asynchronous	9s	20	N × 2min
CreateCard Result Notification	Asynchronous	9s	20	N × 2min
CloseCard Result Notification	Asynchronous	9s	20	N × 2min

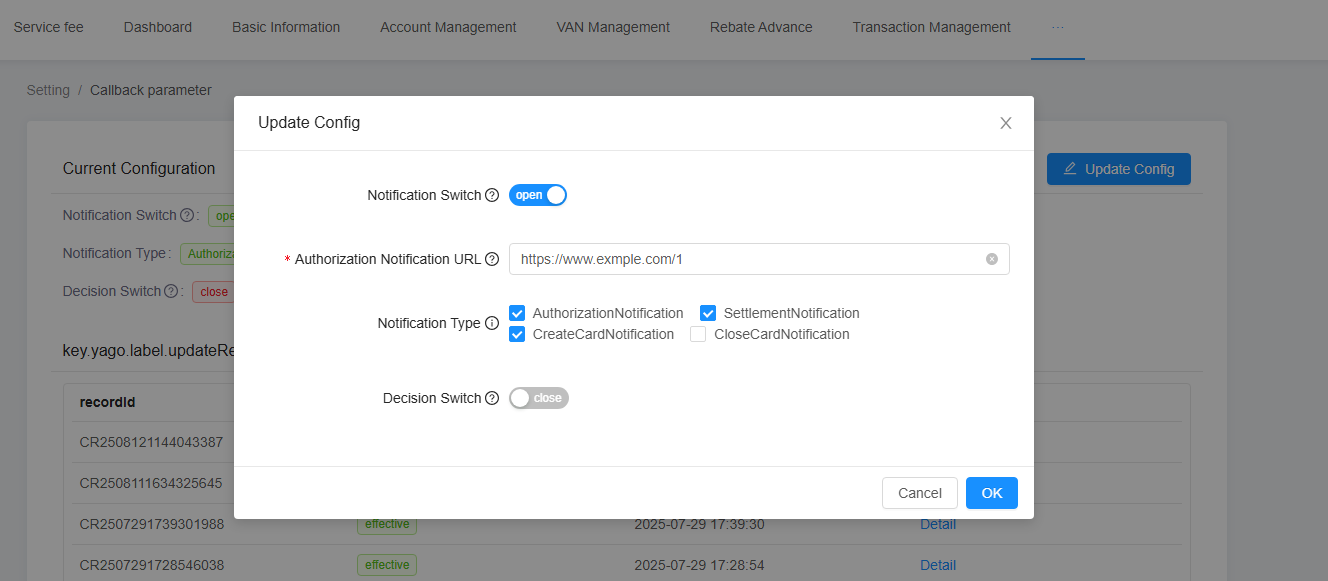

The client can check the items they want to be notified of, and will only be notified if they are checked.

Authorization Decision Callback

Before approving an authorization request, TripLink will call back to this customer interface, allowing the customer to implement their own risk control and authorization decisions.

If the callback fails, TripLink will degrade to using default decision results for the customer, as outlined in the Callback Parameters.

If the callback fails continuously for 10 times, the system will no longer request the customer interface and will directly degrade, requiring the customer to manually re-enable it.

Request Body

Name	Type	Description	Note
bizContent	String	Actual message.	Needs to be deserialized through JSON. See AuthorizationDecision for details.
sign	String	Signature	Sign the original bizContent,Verify the signature with the RSA public key of the API. See Preparation for details.

AuthorizationDecision

Name	Type	Description	Note
authId	String	ID	Unique globally.
transactionId	String	Transaction ID	The transactionId of the reversal transaction is same as the corresponding authorized transaction.
cardLogId	String	Card ID	TripLink-specific card identifier.
localDate	String	Transaction Local date	In local time zone, formatted as yyyyMMdd.
localTime	Sreing	Transaction Local time	In local time zone, formatted as HHmmss.
occurTime	String	Transaction Occurrence time	In card time zone, formatted as yyyy-MM-dd HH:mm:ss.
messageType	String	Transaction type	Enum value, 4 digits, see **authorization type ** dropdown list for details.
messageTypeDesc	String	Transaction type description	See **authorization type ** dropdown list for details.
transCurrency	String	Transaction currency	ISO 4217 currency code, consisting of 3 digits.
transCurrencyAmt	String	Transaction amount	Decimal number, corresponding to the transaction currency.
localCurrency	String	Card currency	ISO 4217 currency code, consisting of 3 digits.
localCurrencyAmt	String	Card transaction amount	Decimal number, corresponding to the card currency. For refund transactions, the card transaction amount is 0.
cardAvailableBalance	String	Card available balance	Decimal number, corresponding to the card currency.
merchantId	String	Merchant ID
merchantName	String	Merchant name
merchantCategoryCode	String	Merchant MCC	ISO 18245 merchant category code, a 4-digit number.
merchantCountry	String	Merchant country	(unstandardized)
isoMerchantCountryCode	String	Merchant country	ISO 3166 country code, 3 letters. (maybe empty)
merchantCity	String	Merchant city
acquirerId	String	Acquirer ID
useRef1Txt	String	User-defined field 1
useRef2Txt	String	User-defined field 2
useRef3Txt	String	User-defined field 3
useRef4Txt	String	User-defined field 4
useRef5Txt	String	User-defined field 5

📋Authorization Type

messageType	messageTypeDesc
6810	Authorization Approval
6510	Auth Refund Approval
6820	Authorization Query

📋Request Body Sample

{
  "bizContent": "{\"authId\":\"311503c7-0466-4d01-a500-551c40b91cf6\",\"cardLogId\":\"51a50ffbbd0437ff10fffb93d1620e213441a30a3fa16164d57d98cade066ba0\",\"localTime\":\"025900\",\"localDate\":\"20220623\",\"occurTime\":\"2022-06-23 10:59:00\",\"merchantCategoryCode\":\"0011\",\"merchantName\":\"\",\"merchantCountry\":\"\",\"state\":\"\",\"merchantCity\":\"\",\"messageType\":\"6810\",\"messageTypeDesc\":\"Authorization Approval\",\"acquirerId\":\"213457\",\"merchantId\":\"080000100003\",\"transCurrency\":\"840\",\"transCurrencyAmt\":\"55.66\",\"localCurrency\":\"840\",\"localCurrencyAmt\":\"55.66\",\"useRef1Txt\":\"anything\",\"useRef2Txt\":\"\",\"useRef3Txt\":\"\",\"useRef4Txt\":\"\",\"useRef5Txt\":\"\",\"cardAvailableBalance\":\"955.57\"}",
  "sign": "k2/HGZOYIFnYI+WZwW1R1YYryOmYd6ds5rAoioKstfslmeBJvVo1KkPOr5zMt86uZ9XFqJV1vDvavreClLnTBbALvtuF44JLZQsGngMe4MvKcWM2oJX4cCcqptqXkz7XpgCuSST0HeTJ8EHuAIQuF+W87/u86pcUMCBjDus1NuNf5MbS/y/eMW3qCwA5s6q1sp7AR2zmXna+eI+n+JEc9tylxo14Kr17pLGX0NRx+iwuw4H/tnazGDN49vW3kbFzRhj/jxN4vB2rvWIdrL1/pdhI2wFRt5b8AfIwhv5ae0GxP3AuaRCNU3LL+YvkvdIA2o+7RctkGhlbe4upzYARog=="
}

Response Body

Clients must identify the authorization decision result through the code field in the response body.

If the value of the code field is 0, it means authorization is granted. If the value is not 0, it means authorization is denied.

Name	Type	Required	Description	Note
code	String	Y	Result code	0: Authorization granted; non-0: Authorization denied.
msg	String	N	Result code description

📋response body sample▶

Authorization Result Notification

TripLink will send the authorization results to this customer interface asynchronously after the authorization is completed.

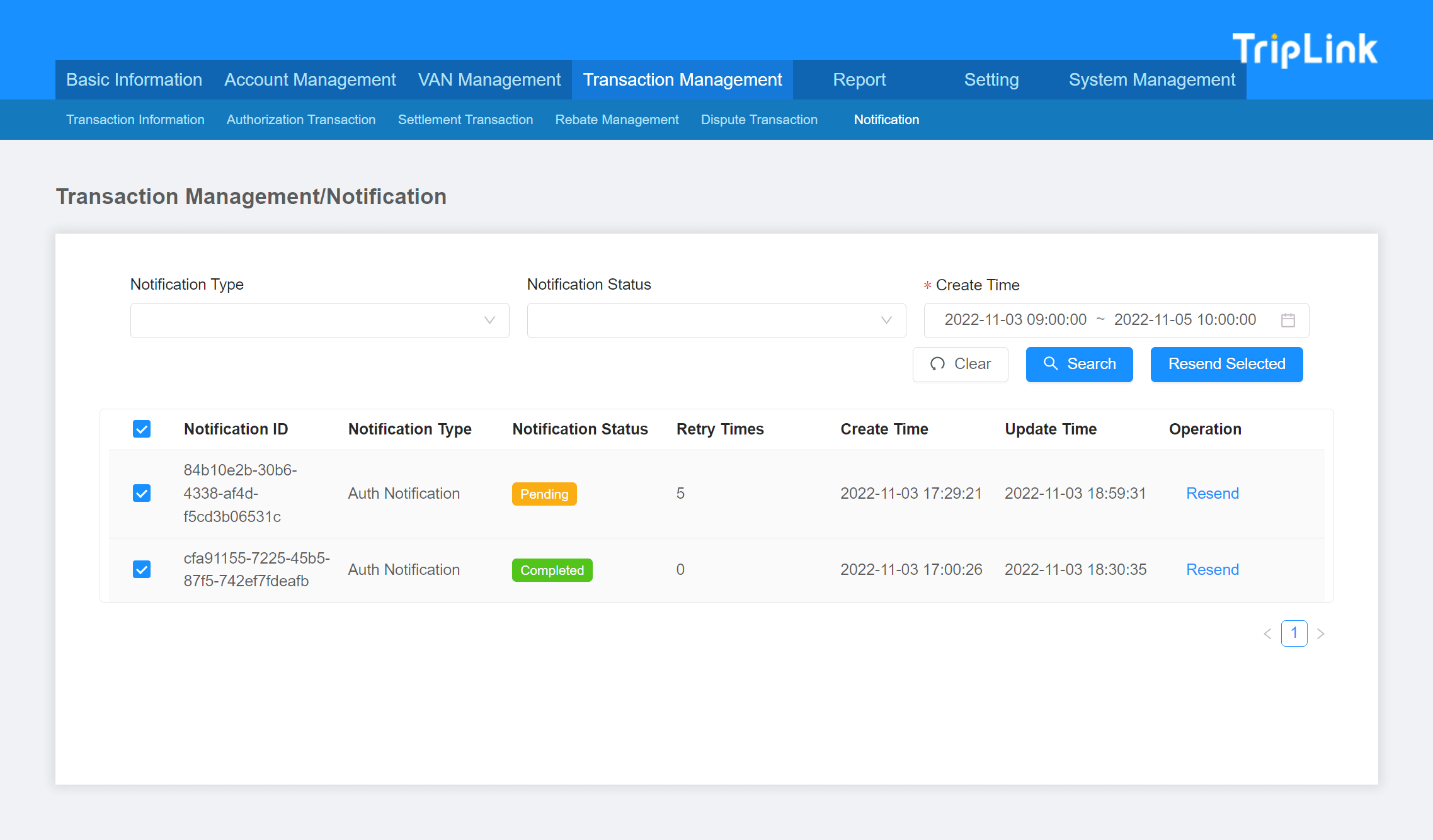

If the notification fails, it will be Retried. After the maximum number of retries is reached, this notification will no longer be sent, but other notifications will not be affected.

Request Body

Name	Type	Description	Note
noticeType	String	Notification type	auth.
bizContent	String	Actual message	It needs to be deserialized through JSON. See AuthorizationNotification for details.
sign	String	Signature	Sign the original bizContent,Verify the signature with the RSA public key of the API. See Preparation for details.

AuthorizationNotification

Name	Type	Description	Note
authId	String	ID	Unique globally.
transactionId	String	Transaction ID	The transactionId of the reversal transaction is same as the corresponding authorized transaction.
cardLogId	String	Card ID	TripLink-specific card identifier.
occurTime	String	Transaction Occurrence time	In card time zone, formatted as yyyy-MM-dd HH:mm:ss.
messageType	String	Transaction type	Enum value, 4 digits, see authorization type dropdown list for details.
messageTypeDesc	String	Transaction type description	See authorization type dropdown list for details.
reversalType	String	Reversal Type	Only valid when the authorization type is 6930 or 6940. 0: System reversal; 1: Non-system reversal.
respCode	String	Transaction Response Code	Enumerated value, 4 digits. See response code dropdown for details.
respCodeDesc	String	Transaction Response Code Description	See response code dropdown for details.
approveCode	String	Authorization Code	Random 6 digits.
transCurrency	String	Transaction currency	ISO 4217 currency code, consisting of 3 digits.
transCurrencyAmt	String	Transaction amount	Decimal number, corresponding to the transaction currency.
localCurrency	String	Card currency	ISO 4217 currency code, consisting of 3 digits.
localCurrencyAmt	String	Card transaction amount	Decimal number, corresponding to the card currency. For refund transactions, the card transaction amount is 0.
cardAvailableBalance	String	Card available balance	Decimal number, corresponding to the card currency.
merchantId	String	Merchant ID
merchantName	String	Merchant name
merchantCategoryCode	String	Merchant MCC	ISO 18245 merchant category code, a 4-digit number.
merchantCountry	String	Merchant country	(unstandardized)
isoMerchantCountryCode	String	Merchant country	ISO 3166 country code, 3 letters. (maybe empty)
merchantCity	String	Merchant city
acquirerId	String	Acquirer ID
crossBorderType	String	Cross-border type	0: Domestic; 1: Overseas.
useRef1Txt	String	User-defined field 1
useRef2Txt	String	User-defined field 2
useRef3Txt	String	User-defined field 3
useRef4Txt	String	User-defined field 4
useRef5Txt	String	User-defined field 5

📋authorization type

messageType	messageTypeDesc
6810	Authorization Approval
6890	Authorization Decline
6510	Auth Refund Approval
6590	Auth Refund Decline
6930	Authorization Reversal Approval
6940	Auth Refund Reversal Approval
6820	Authorization Query

📋response code（6810 Authorization Approval）

respCode	respCodeDesc
0000	Authorization Approval

📋response code（6890 Authorization Decline）

respCode	respCodeDesc
1002	High Risk Transaction
1003	Invalid Account
1101	Abnormal Customer Status
1102	Card canceled
1103	Authorization Amount Error
1104	VAN Amount Limit Error
1105	Invalid Expiry Date
1106	Transaction Count Over Limit
1107	Invalid CVV2
1108	VAN Amount Limit Error
1110	Trans Currency Not Allowed
1111	MCC Error
1112	VAN credit limit greater than max Limit
1113	VAN credit limit less than min Limit
1114	Transaction Date before card activeDate
1115	Transaction Date after card inactiveDate
1116	Auth Amount greater than available VAN credit limit
1117	Auth Amount greater than available account credit limit
1118	Limited usage with abnormal card status
1201	Authorization already in process, please wait until the last authorization completed
1203	Not support 3ds
2012	Cardholder cancels identity verification
2014	Cardholder fails to complete identity verification within the specified time
2019	Cardholder fails to complete identity verification within the specified number of attempts
2022	Merchant requests invalid information
2222	Authorization decision reject
2299	Authorization decision downgrade reject
3004	Abnormal Card Scheme Network
9000	Unknow Error

📋response code（6510 Auth Refund Approval）

respCode	respCodeDesc
0000	Authorization Approval

📋response code（6590 Auth Refund Decline）▶

📋response code（6930 Authorization Reversal Approval）

respCode	respCodeDesc
0000	Authorization Approval
1002	High Risk Transaction
1003	Invalid Account
1101	Abnormal Customer Status
1105	Invalid Expiry Date
2001	Original Transaction Unmatch
2002	Original Transaction Unmatch

📋response code（6940 Auth Refund Reversal Approval）

respCode	respCodeDesc
0000	Authorization Approval
1002	High Risk Transaction
1003	Invalid Account
2001	Original Transaction Unmatch
2002	Original Transaction Unmatch

📋response code（6820 Authorization Query）

respCode	respCodeDesc
0000	Authorization Approval
1002	High Risk Transaction
1003	Invalid Account
1102	Card canceled
1118	Limited usage with abnormal card status

📋request body sample▶

Response Body

The customer must identify the notification receiving result through the code field in the response body

If the value of the code field is 0, it means receiving success. If the value is not 0, it means receiving failure.

Name	Type	Required	Description	Note
code	String	Y	Result code	0: receiving success; non-0: receiving failure.
msg	String	N	Result code description

📋response body sample▶

Settlement Result Notification

TripLink will send the settlement results to this customer interface asynchronously after the authorization is completed.

If the notification fails, it will be Retried. After the maximum number of retries is reached, this notification will no longer be sent, but other notifications will not be affected.

Request Body

Name	Type	Description	Note
noticeType	String	Notification type	clearing.
bizContent	String	Actual message	It needs to be deserialized through JSON. See AuthorizationNotification for details.
sign	String	Signature	Sign the original bizContent,Verify the signature with the RSA public key of the API. See Preparation for details.

SettlementNotification

Name	Type	Description	Comment
serialNo	String	transaction ID	Globally unique.
occurDateTime	String	transaction time	Format yyyy-MM-dd HH:mm:ss.
postingDateTime	String	posting time	Format yyyy-MM-dd HH:mm:ss.
postingSysTime	String	system posting time	Format yyyy-MM-dd.
transactionCode	String	transaction type	Enumerated type, 4 digits, see settlement type drop-down list.
transactionType	String	transaction code description	See settlement type drop-down list.
approvalCode	String	authorization code	Random 6 alphanumeric.
isCredit	String	credit transaction	DEBT: Debit, CRED: Credit.
originalTransactionCurrency	String	transaction currency code	ISO 4217 currency code, 3 digits.
originalTransactionAmount	Number	transaction amount	Decimal, matching transaction currency.
cardTransactionCurrency	String	card currency	ISO 4217 currency code, 3 digits.
cardTransactionAmount	Number	card transaction Amount	Decimal, matching card currency.
accountCurrency	String	settlement currency code	ISO 4217 currency code, 3 digits.
billAccountAmount	Number	settlement amount	Decimal, matching settlement currency.
posMerchantID	String	merchant ID
posMerchantName	String	merchant name
posMerchantClassCode	String	merchant MCC	ISO 18245 merchant type, 4 digits.
posMerchantCountry	String	merchant country	(unstandardized)
isoMerchantCountryCode	String	merchant country	ISO 3166 country code, 3 letters. (maybe empty)
posMerchantCity	String	merchant city
posAcquirerID	String	acquirer ID
transactionId	String	transaction relation ID	Settlement and corresponding authorization has same value.
cardLogId	String	card ID	TripLink card ID.
customerId	String	customer ID
useRef1Txt	String	User-defined field 1
useRef2Txt	String	User-defined field 2
useRef3Txt	String	User-defined field 3
useRef4Txt	String	User-defined field 4
useRef5Txt	String	User-defined field 5
useRef6Txt	String	User-defined field 6
useRef7Txt	String	User-defined field 7
useRef8Txt	String	User-defined field 8
useRef9Txt	String	User-defined field 9
useRef10Txt	String	User-defined field 10
useRef11Txt	String	User-defined field 11
useRef12Txt	String	User-defined field 12
useRef13Txt	String	User-defined field 13
useRef14Txt	String	User-defined field 14
useRef15Txt	String	User-defined field 15
useRef16Txt	String	User-defined field 16
useRef17Txt	String	User-defined field 17
useRef18Txt	String	User-defined field 18
useRef19Txt	String	User-defined field 19
useRef20Txt	String	User-defined field 20

📋settlement type

transactionCode	transactionType	Description	Debit/Credit	Amount Sign
2010	Purchase	Purchase	DEBT	Positive
2110	Refund	Refund	CRED	Negative

📋request body sample

{
  "noticeType": "clearing",
  "bizContent": "{"serialNo":"MAST202507281626132705079335612","transactionId":"202507281626132705079335612","occurDateTime":"2025-07-28 16:26:13","postingDateTime":"2025-07-28 16:26:28","postingSysTime":"2025-07-28","transactionCode":"2010","transactionType":"Purchase","approvalCode":"SZX6WJ","isCredit":"DEBT","originalTransactionCurrency":"840","originalTransactionAmount":10.0,"cardTransactionCurrency":"840","cardTransactionAmount":10.0,"accountCurrency":"840","billAccountAmount":10.0,"posMerchantID":"797967000300753","posMerchantName":"","posMerchantClassCode":"0015","posMerchantCountry":"HKG","isoMerchantCountryCode":"HKG","posMerchantCity":"HKG","posAcquirerID":"00000032642"}",
  "sign": "raqtzxjjWGyjrPDkn3aR+N+ZU6kpyiLeJNeFzQXmfoqsomkxsccg783FraLPWBrPgn0nhjtuVQLIWMply1chS7g1jgdGaFiGSXCwgL+XIVX0n2J1Z8YtDBEqeJLbRcmWiGAavQk8JSjBtDigJIopjL5mAT9+X5vrf4a6YxpAoky7DemuClKNb50OuH15ADICWednwQZsI0wJ8WTpZNb4f9jrMGdlztXvj/Nf7Gk2Uwx1v/morWEDe1BFD8FWFUsmKwdBxYS8iMT3f5YiAWzYt7VItOl6ymlNSdZmGazXYQ2MPScunPQXdSf2fQ6NM8NVlz7or5w5cj7aiZAgzpHUrQ=="
}

Response Body

The customer must identify the notification receiving result through the code field in the response body

If the value of the code field is 0, it means receiving success. If the value is not 0, it means receiving failure.

Name	Type	Required	Description	Note
code	String	Y	Result code	0：receiving success；non-0：receiving failure。
msg	String	N	Result code description

📋response body sample▶

Deposit Result Notification

TripLink will send the deposit results to this customer interface asynchronously after the deposit is completed.

If the notification fails, it will be Retried. After the maximum number of retries is reached, this notification will no longer be sent, but other notifications will not be affected.

Request Body

Name	Type	Description	Note
noticeType	String	Notification type	deposit.
bizContent	String	Actual message	It needs to be deserialized through JSON. See DepositNotification for details.
sign	String	Signature	Sign the original bizContent,Verify the signature with the RSA public key of the API. See Preparation for details.

DepositNotification

Name	Type	Description	Comment
orderId	String	Order ID	Globally unique.
orderType	String	Order Type	Topup.
creditAccountNo	String	Credit Account Number
creditAccountName	String	Credit Account Name
debitAccountNo	String	Debit Account Number
debitAccountName	String	Debit Account Name
currency	String	Currency	ISO 4217 currency code, 3 digits.
amount	String	Amount
transactionTime	String	Transaction Time	Format yyyy-MM-dd HH:mm:ss.
remark	String	Remark

📋request body sample▶

Response Body

The customer must identify the notification receiving result through the code field in the response body

If the value of the code field is 0, it means receiving success. If the value is not 0, it means receiving failure.

Name	Type	Required	Description	Note
code	String	Y	Result code	0：receiving success；non-0：receiving failure。
msg	String	N	Result code description

📋request body sample▶

CreateCard Result Notification

TripLink will send the created card results to this customer interface asynchronously after the authorization is completed.

If the notification fails, it will be Retried. After the maximum number of retries is reached, this notification will no longer be sent, but other notifications will not be affected.

Request Body

Name	Type	Description	Note
noticeType	String	Notification type	create.
bizContent	String	Actual message	It needs to be deserialized through JSON. See AuthorizationNotification for details.
sign	String	Signature	Sign the original bizContent,Sign the original bizContent,Verify the signature with the RSA public key of the API. See Preparation for details.

CreateCardNotification

Name	Type	Description	Note
cardLogId	String	card ID	TripLink card ID.
requestId	String	request ID	The original create card request ID.
requestSource	String	request source	API Via API request Portal Via portal request System System create card.
createTime	String	create card time	Format yyyy-MM-dd HH:mm:ss
returnCode	String	result code	Enumerated type，6digits，seeresult codedrop-down list. （code other than 000000 means request failed）
errorMessage	String	result code description	Seeresult codedrop-down list.
cardCurrencyCode	String	card currency code	ISO 4217 currency code, 3 digits.
cardLimit	String	credit limit	Decimal, matching card currency.

📋result code

returnCode	errorMessage
000000	Success
100000	Input parameter is incorrect (not fixed)
100001	Reduplicative requestid
200002	Both MCC, MCC groups and [acquirerId,merchantId] are all empty
200003	Customer info not find
200007	Global parameter not find
200008	InactiveDate must be greater than activeDate
200013	Not find the mapping between the cardCurrency and settlementCurrency
200014	AcquirerId/mid must not be empty
200022	Not find active pan number config
200029	Card exists pending request
200036	card bin not support
200037	InactiveDate must submit
200038	cardCloseUsage not be null
200040	Invalid global parameter (indate)
200043	mcc group is empty
200044	mcc group all is not supported
200048	Card issuer failed (not fixed)
200060	Card issuer parameter error (not fixed)
201000	Card available balance exceeds the maximum limit
300004	mcc link channel group is empty
300005	Trading is risky
9XXXXX	System error (not fixed)

📋request body sample▶

Response Body

The customer must identify the notification receiving result through the code field in the response body

If the value of the code field is 0, it means receiving success. If the value is not 0, it means receiving failure.

Name	Type	Required	Description	Note
code	String	Y	Result code	0：receiving success；non-0：receiving failure。
msg	String	N	Result code description

📋response body sample▶

CloseCard Result Notification

TripLink will send the closed card results to this customer interface asynchronously after the authorization is completed.

If the notification fails, it will be Retried. After the maximum number of retries is reached, this notification will no longer be sent, but other notifications will not be affected.

Request Body

Name	Type	Description	Note
noticeType	String	Notification type	close.
bizContent	String	Actual message	It needs to be deserialized through JSON. See AuthorizationNotification for details.
sign	String	Signature	Sign the original bizContent,Verify the signature with the RSA public key of the API. See Preparation for details.

CloseCardNotification

Name	Type	Description	Note
cardLogId	String	card ID	TripLink card ID.
requestId	String	request ID	The original close card request ID.
requestSource	String	request source	API Via API request Portal Via portal request System System create card.
cancelTime	String	close card time	Format yyyy-MM-dd HH:mm:ss
closedReason	String	close card reason	Enumerated type，6digits，seeclose card resondrop-down list.
cardStatus	String	card status	CLOP：Pre-Canceled

📋close card reason

closedReason	Note
100001	Customers actively close the card.
100002	The auto-close threshold percentage condition is met.
100003	The single-use card has been used.
100005	High-risk card.

📋request body sample▶

Response Body

The customer must identify the notification receiving result through the code field in the response body

If the value of the code field is 0, it means receiving success. If the value is not 0, it means receiving failure.

Name	Type	Required	Description	Note
code	String	Y	Result code	0：receiving success；non-0：receiving failure。
msg	String	N	Result code description

📋response body sample▶

Notification Query and Resend

Customers can query all result notifications in the merchant system (Transaction Management - Notification Query) and support resend (single/batch).

Signature Verification SDK example

📋Java SDK▶

📋PHP SDK▶

TRIPLINK_PUBLIC_KEY：TripLink RSA public key.
